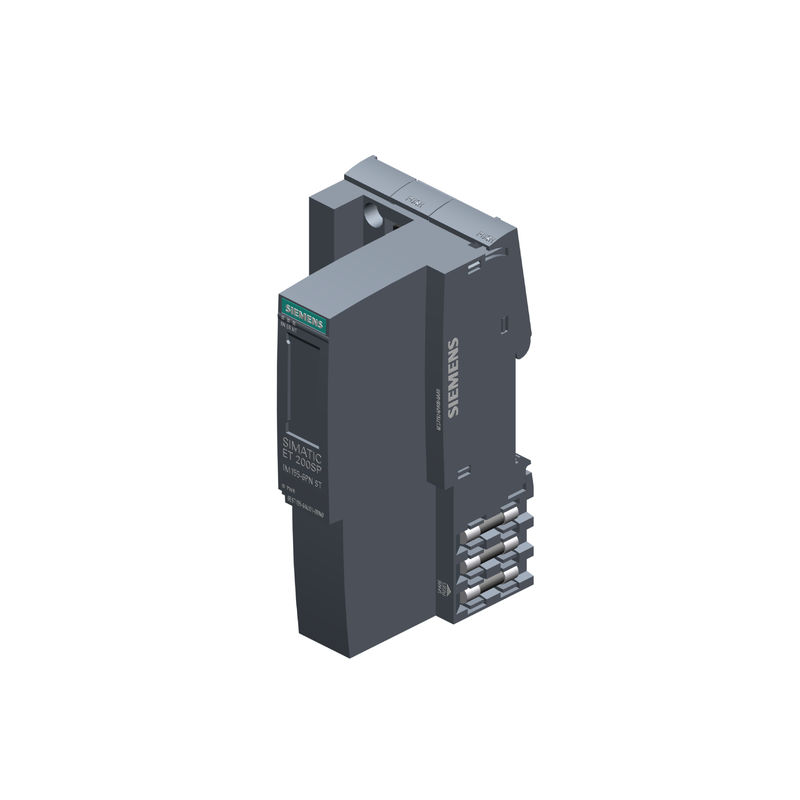

6ES7155-6AU01-0BN0 SIMATIC ET 200SP PROFINET IM Bundle IM 155-6PN ST Series Condition

6ES7155-6AU01-0BN0 SIMATIC ET 200SP PROFINET IM Bundle

Alibaba Web : https://shkautomation.en.alibaba.com

Description:

SIMATIC ET 200SP, PROFINET interface module IM 155-6PN Standard, max. 32 I/O modules,

and 16 ET 200AL modules, single hot swap, incl. server module (6ES7193-6PA00-0AA0).

Frequently bought together:6ES7155-6AU01-0CN0

Description:

SIMATIC ET 200SP, PROFINET, 2-port interface module IM 155-6PN/2 High Feature,

1 slot for BusAdapter, max. 64 I/O modules and 16 ET 200AL modules, S2 redundancy,

multi-hotswap, 0.25 ms, isochronous mode, optional PN strain relief, including server module

6ES7155-6AA01-0BN0                                               6ES7155-6AU01-0CN0

Mandatory Additional Product :

6ES5710-8MA11:SIMATIC, Standard mounting rail 35mm, Length 483 mm for 19" cabinet.

6ES5710-8MA21:SIMATIC, Standard mounting rail 35mm, Length 530 mm for 600mm cabinet.

6ES5710-8MA31:SIMATIC, Standard mounting rail 35mm, Length 830 mm for 900mm cabinet.

6ES5710-8MA41:SIMATIC, Standard mounting rail 35mm, Length 2m.

Related questions for Siemens 6ES7155-6AU01-0BN0

What is the maximum number of peripheral modules supported by this interface module?
The Siemens 6ES7155-6AU01-0BN0 interface module supports a maximum of 32 peripheral modules.

Is this interface module compatible with PROFINET?
Yes, the 6ES7155-6AU01-0BN0 interface module is compatible with PROFINET communication.

What is the supply voltage range for this interface module?
The supply voltage range for the 6ES7155-6AU01-0BN0 interface module is 19.2 V DC to 28.8 V DC, with a rated value of 24 V DC.

Does this interface module have reverse polarity protection?
Yes, the Siemens 6ES7155-6AU01-0BN0 interface module is equipped with reverse polarity protection.

What are the dimensions of this interface module?
The dimensions of the 6ES7155-6AU01-0BN0 interface module are 50 mm in width, 117 mm in height, and 74 mm in depth.

What is the operating temperature range for this interface module?
The operating temperature range for the 6ES7155-6AU01-0BN0 interface module is 0°C to 60°C for horizontal installation and 0°C to 50°C for vertical installation.

What are the diagnostic functions and indicators available on this interface module?
The 6ES7155-6AU01-0BN0 interface module has diagnostic functions and various diagnostic indication LEDs, including RUN LED (green), ERROR LED (red), MAINT LED (yellow), supply voltage monitoring (PWR-LED, green), and connection display LINK TX/RX (2x green LEDs).
